150/200/250W(Dimming)



150W/200W/250W Dimming Mini Type   Compact Type   Slim-Small Type



Product Characteristics

  · Energy Saving with Running 70% of Normal Output Power
  · CO2 Emission Decrease
  · Relieve User's visual burden
    by 1 Min. Illumination Control during Dimming





Product Characteristics


 Model

 Input Voltage(V)

 Input Current(A)

 Outut Power(W)

Power Factor(%)

 THD(%)

 Operating Voltage(Kv)

Product Size(mm)

 Weight (g)

MB150-22HE(Control)

220~240

0.75~0.50*

150/100

> 98

< 10

< 5

176.5x86x37

500

MB150-22HE(Timer)

220~240

0.75~0.50*

150/100

> 98

 < 10

< 5

176.5x86x37

500

MB200-22HE(Control)

220~240

0.95~0.62*

200/135

> 98

< 10

< 5

194x95x52

1,100

MB200-22HE(Timer)

220~240

0.96~0.62*

200/135

> 98

  < 10

< 5

194x95x52

1,100

MB250-HE(Control)

 220~240

1.20~0.75*

 250/165

 > 98

 < 10

 < 5

 194x95x52

1,100

 MB250-HE(Timer)

 220~240

1.20~0.75*

 250/165

 > 98

 < 10

 < 5

 194x95x52

1,100

Wiring Diagram

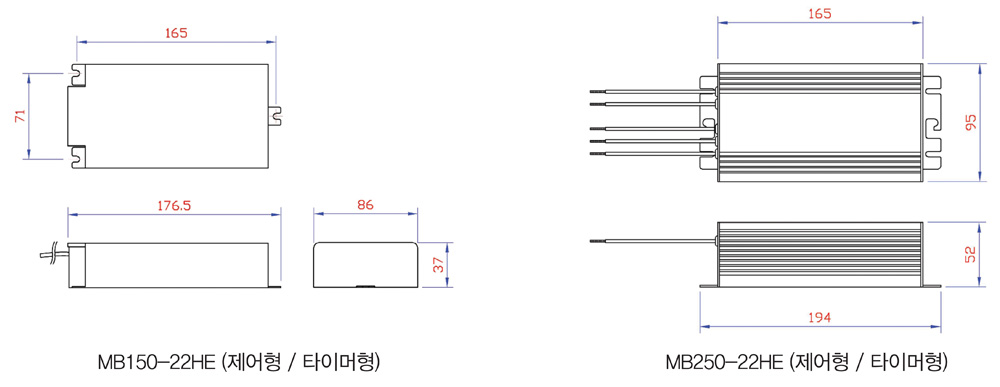

Product Drawing
